Half Cell Solar PV Panel Mono PERC PV Module 600W 550W

Name: Half Cell Solar PV Panel Mono PERC PV Module 600W 550W
Brand: Hochiry
Price: 1 USD

Brand Name : Hochiry

Model Number : HR450M-144HC

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : 144 Cells Half Cell PV Solar Power Panel

Solar cell : Mono 182mmx182mm

Number of cells : 120 (6*20) Pcs

Solar power (w) : 2000W

Max. power : 600W 550W

Solar Cells : Monocrystalline,Polycrystalline,Amorphous Silicon

Frame : Anodized Aluminium Alloy

Material : Monocrystalline Silicon

Warranty : 25 Years Output Power Guarantee

Panel Efficiency : High Efficiency 144cells

Glass : 3.2mm High Transmission Tempered Glass

TPT back sheet : White Backsheet

Connector : MC4 Compatible

Junction Box : IP68 rated, 3 diodes

Contact Now

Mono PERC Photovoltaic Module 600W 550W 144 Cells Half Cell PV Solar Power Panel

Model Number:HCR450M-144
Weight:24kg
Size:2115*1052*40mm(Opt)
Junction Box:IP68 Rated
Solar cell: Monocrystalline, PERC,166mm(9BB)
TPT back sheet:White Backsheet
Connector:MC4 Compatible /MC4 EVO2/TS4*
Glass:3.2mm, High Transmission, AR Coated Heat

Product Description

Half Cell Solar PV Panel Mono PERC PV Module 600W 550W

ELECTRICAL DATA (STC)580-605W
Peak Power Watts-PMAX (Wp)	580	585	590	595	600
Maximum Power Voltage-VMPP (V)	33.8	34.0	34.2	34.4	34.6
Maximum Power Current-IMPP (A)	17.16	17.21	17.25	17.30	17.34
Open Circuit Voltage-VOC (V)	40.9	41.1	41.3	41.5	41.7
Short Circuit Current-ISC (A)	18.21	18.26	18.31	18.36	18.42
Module Eciency η m (%)	20.5	20.7	20.8	21.0	21.2
Power Tolerance-PMAX (W)	0 ~ +5
NOCT(Nominal Operating Cell Temperature)	43°C (±2°C)
Temperature Coecient of VOC	- 0.25%/°C
Temperature Coecient of ISC	0.04%/°C
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5-Measuring tolerance: ±3%

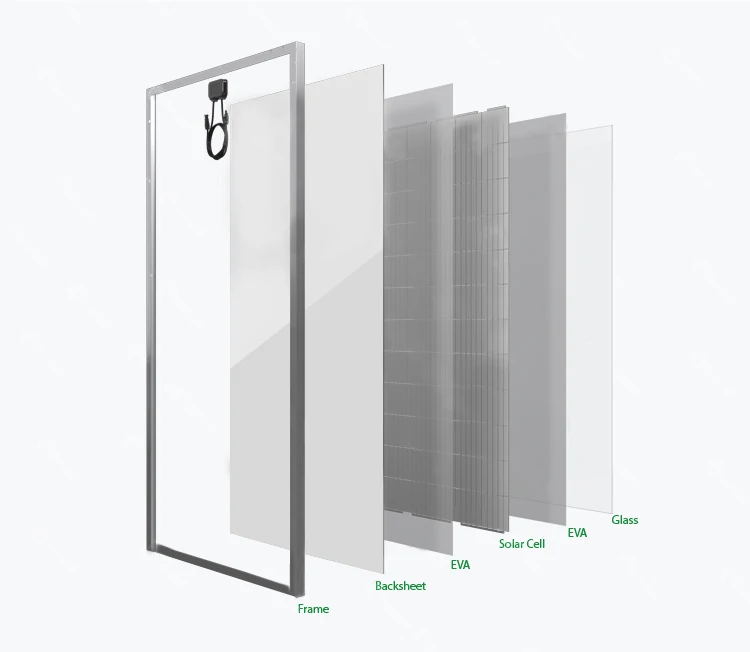

Product Details

Glass by XINYI,SG CNBMAnti-reflective glass

22% Higher Efficiency Cell by  Tier 1 Brand

Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame

Waterproof Labels Product by Waterproof Labels Sunway/OEM

Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness

PV Connector by TL, QC Solar MC4 4mm Qualified cable

Our Factory

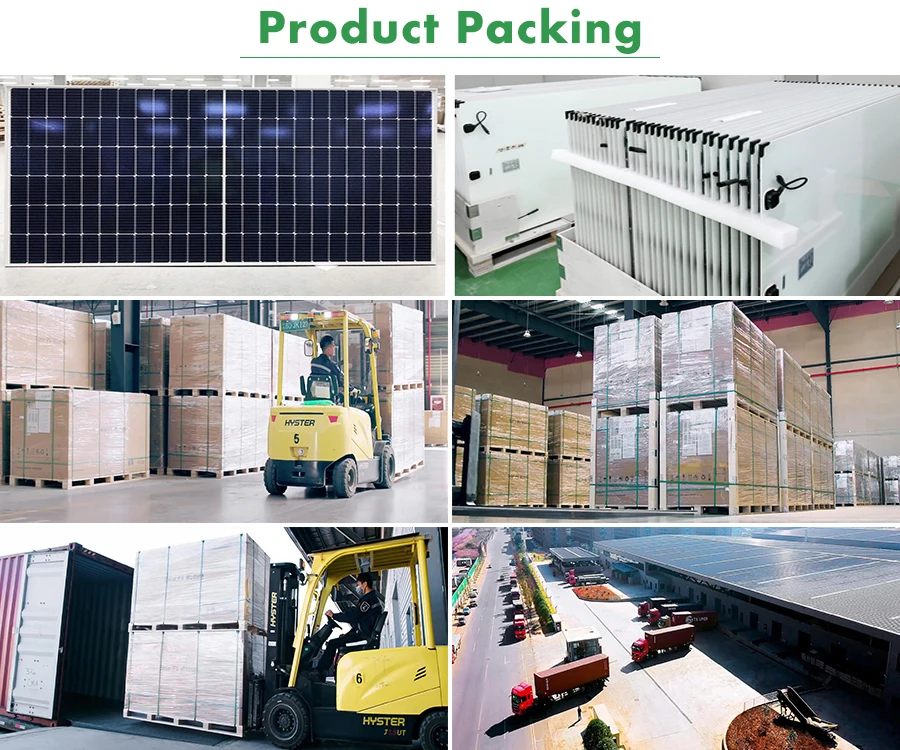

Product Packaging

Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
 with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

Project Case
