PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels

Name: PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels
Brand: Hochiry
Price: 1 USD

Quality PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels for sale

Brand Name : Hochiry

Model Number : HCR460M-144

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : Full Black Solar Panels 460w Mono Solar Panel

Solar cell : 9BB MONO 166*83mm

Number of cells : 144 Cells

Max. power : 440W 450W 460W

Frame : Anodized Aluminium Alloy

Material : Monocrystalline Silicon

Warranty : 30 Years Output Power Guarantee

Panel Efficiency : 21.54%

Glass : 3.2mm High Transmission Tempered Glass

TPT back sheet : White Backsheet

Connector : MC4 Compatible

Junction Box : IP68 rated, 3 diodes

Contact Now

Hochiry TUV Certified All-Black 440W 450w 460Watt Solar Panels Pv Module Sunpower Solar Panels

Model Number:HCR460M-144
TPT back sheet:Black
Junction Box:IP68 Rated
Size:1640*992*35mm(Opt)
Encapsulant Material:EVA/POE
Solar cell:Monocrystalline PERC
Frame:Black Anodized Aluminium Alloy
Connector:MC4 Compatible /MC4 EVO2/TS4*
Glass:3.2mm, High Transmission, AR Coated Heat
Strengthened Glass

Products Description

PERC 450w Solar Pv Module Monocrystalline Silicon Sunpower Solar Panels

Electrical Parameters
Module	HCR440M-144 ~ HCR460M-144
Encapsulation	Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax (W)	440	445	450	455	460
Maximum Power Voltage (Vmp/V)	40.5	40.8	41	41.3	41.6
Maximum Power Current (Imp/A)	10.86	10.92	10.98	11.04	11.1
Open Circuit Voltage (Voc/V)	49	49.2	49.5	49.8	50.1
Short Circuit Current (Isc/A)	11.3	11.36	11.42	11.48	11.54
Cell Efficiency(%)	22.18	22.43	22.68	22.93	23.19
Module Efficiency (%)	20.24	20.47	20.7	20.93	21.16
Power Tolerance (W)	0 ~ +5W
Temperature Coefficient of Isc (αIsc)	0.06%/℃
Temperature Coefficient of Voc (βVoc)	0.30%/℃
Temperature Coefficient of Pmax (γPmp)	0.38%/℃
STC	Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5

Product Details

Waterproof Labels Product by Waterproof Labels Sunway/OEM

Juction Boxes by TL, QC Solar Innovative Full-Glue-Filled IP68 Waterproofness

PV Connector by TL, QC Solar MC4 4mm Qualified cable

Our Factory

Product Packaging

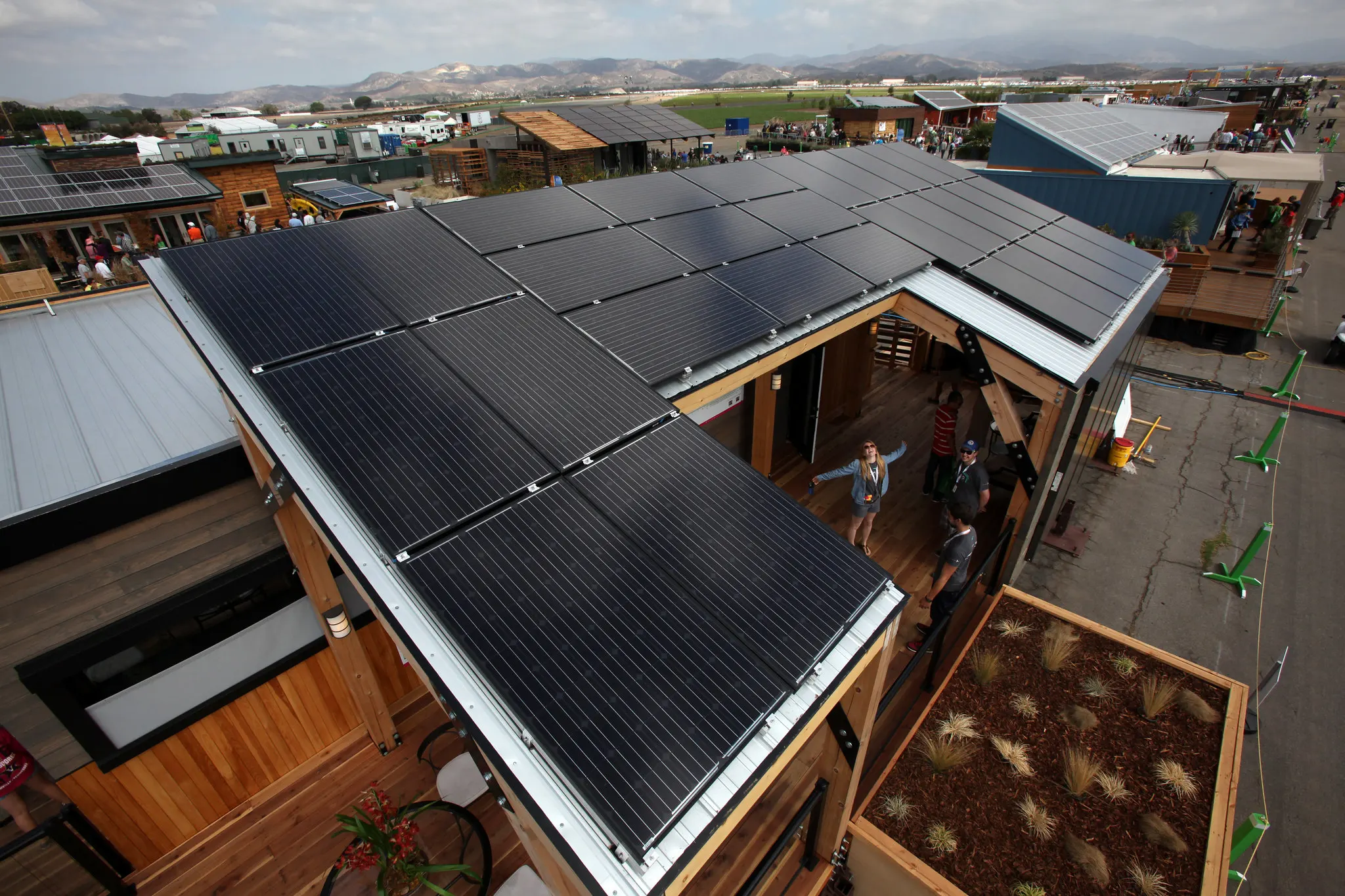

Project Case
