144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy

Product Categories
SHENZHEN HODAS TECHNOLOGY COMPANY
Contact Now

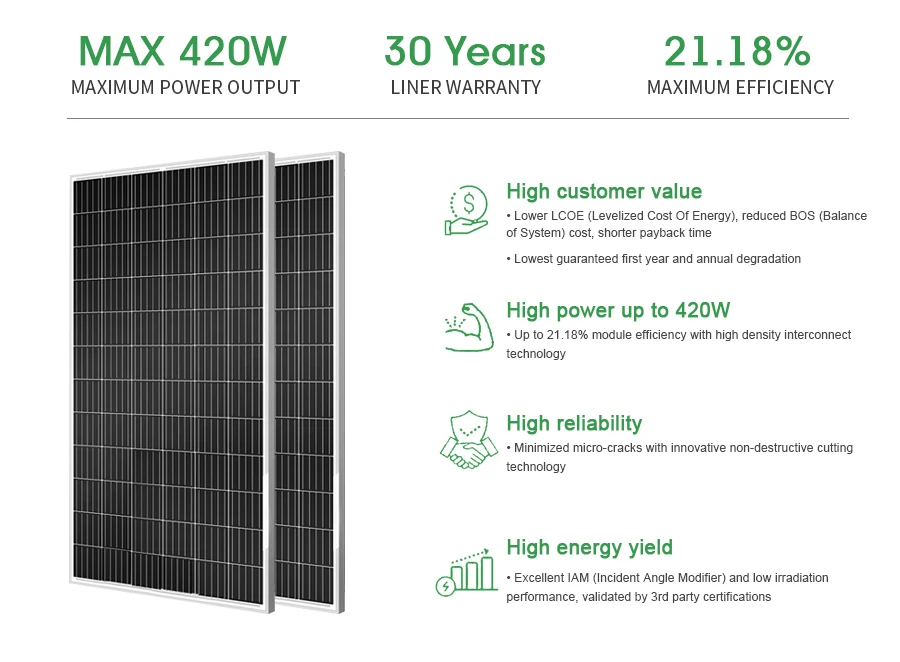

144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy

Brand Name : Hochiry

Model Number : HCR460M-144

Certification : TUV

Place of Origin : CHINA

MOQ : 100PCS

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 20-25 work days

Packaging Details : 27pcs/ per pallet 270pcs/ 1*20' container 648pcs/ 1*40' container

Product name : 420W Photovoltaic Solar Panel

Solar cell : 9BB MONO 166*83mm

Number of cells : 144 (6*24)

Max. power : 380W 390W 400W 420W

Frame : Anodized Aluminium Alloy

Material : Monocrystalline Silicon

Warranty : 30 Years Output Power Guarantee

Panel Efficiency : 21.54%

Glass : 3.2mm High Transmission Tempered Glass

TPT back sheet : White Backsheet

Connector : MC4 Compatible

Junction Box : IP68 rated, 3 diodes

Type : PERC, Half Cell, All Black

Contact Now

Hochiry Black Solar Panels 144 Cells Mono Photovoltaic Module 440W 445W 450W 455W 460W Solar Panels For Solar Energy
Model Number:HCR460M-144
Weight:24kg
Size:2256*1132*35mm(Opt)
Junction Box:IP68 Rated
Solar cell: Monocrystalline, PERC,166mm(9BB)
TPT back sheet:White Backsheet
Connector:MC4 Compatible /MC4 EVO2/TS4*
Glass:3.2mm, High Transmission, AR Coated Heat
Product Description
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
Electrical Parameters
Module
HCR440M-144 ~ HCR460M-144
Encapsulation
Class/Eva/Cell/Eva/Backsheet
Maximum Power Pmax (W)
440
445
450
455
460
Maximum Power Voltage (Vmp/V)
40.5
40.8
41
41.3
41.6
Maximum Power Current (Imp/A)
10.86
10.92
10.98
11.04
11.1
Open Circuit Voltage (Voc/V)
49
49.2
49.5
49.8
50.1
Short Circuit Current (Isc/A)
11.3
11.36
11.42
11.48
11.54
Cell Efficiency(%)
22.18
22.43
22.68
22.93
23.19
Module Efficiency (%)
20.24
20.47
20.7
20.93
21.16
Power Tolerance (W)
0 ~ +5W
Temperature Coefficient of Isc (αIsc)
0.06%/℃
Temperature Coefficient of Voc (βVoc)
0.30%/℃
Temperature Coefficient of Pmax (γPmp)
0.38%/℃
STC
Irradiance 1000W/㎡, Cell Temperature 25℃ , Air Mass 1.5
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
Product Details
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
Glass by XINYI,SG CNBM
Anti-reflective glass
22% Higher Efficiency
Cell by Tier 1 Brand
Frame by Tentop(Black/Silver Optional) 120N Tensile Strength Frame
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
Waterproof Labels
Product by Waterproof Labels Sunway/OEM
Juction Boxes by TL, QC Solar
Innovative Full-Glue-Filled IP68 Waterproofness
PV Connector by TL, QC Solar
MC4 4mm Qualified cable
Our Factory
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
Product Packaging
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Project Case
144 Cells Monocrystalline Pv Module 440W 445W For Solar Energy
